IMETER M20b measuring system

IMETER M20b measuring system

An IMETER M20b measuring system is available at the GeoZentrum for recording and analysing the curing behaviour of cementitious systems under controlled humidity and temperature conditions.

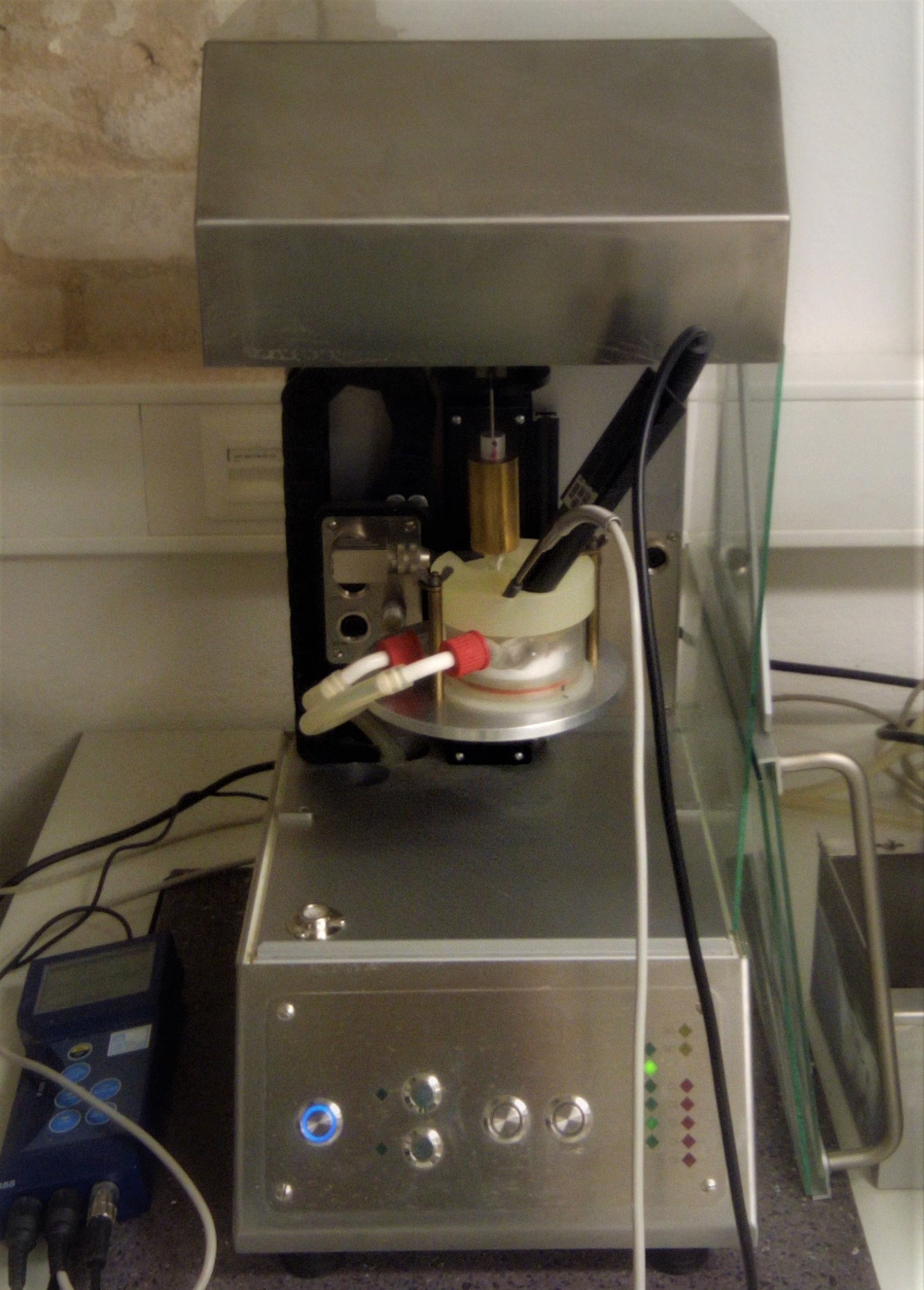

IMETER M20b measuring system

The penetration test method is using a cylindrical needle. The IMETER hardness Hi20 is determined at defined times during the hydration process and thus changes in the consistency of the material are continuously detected.

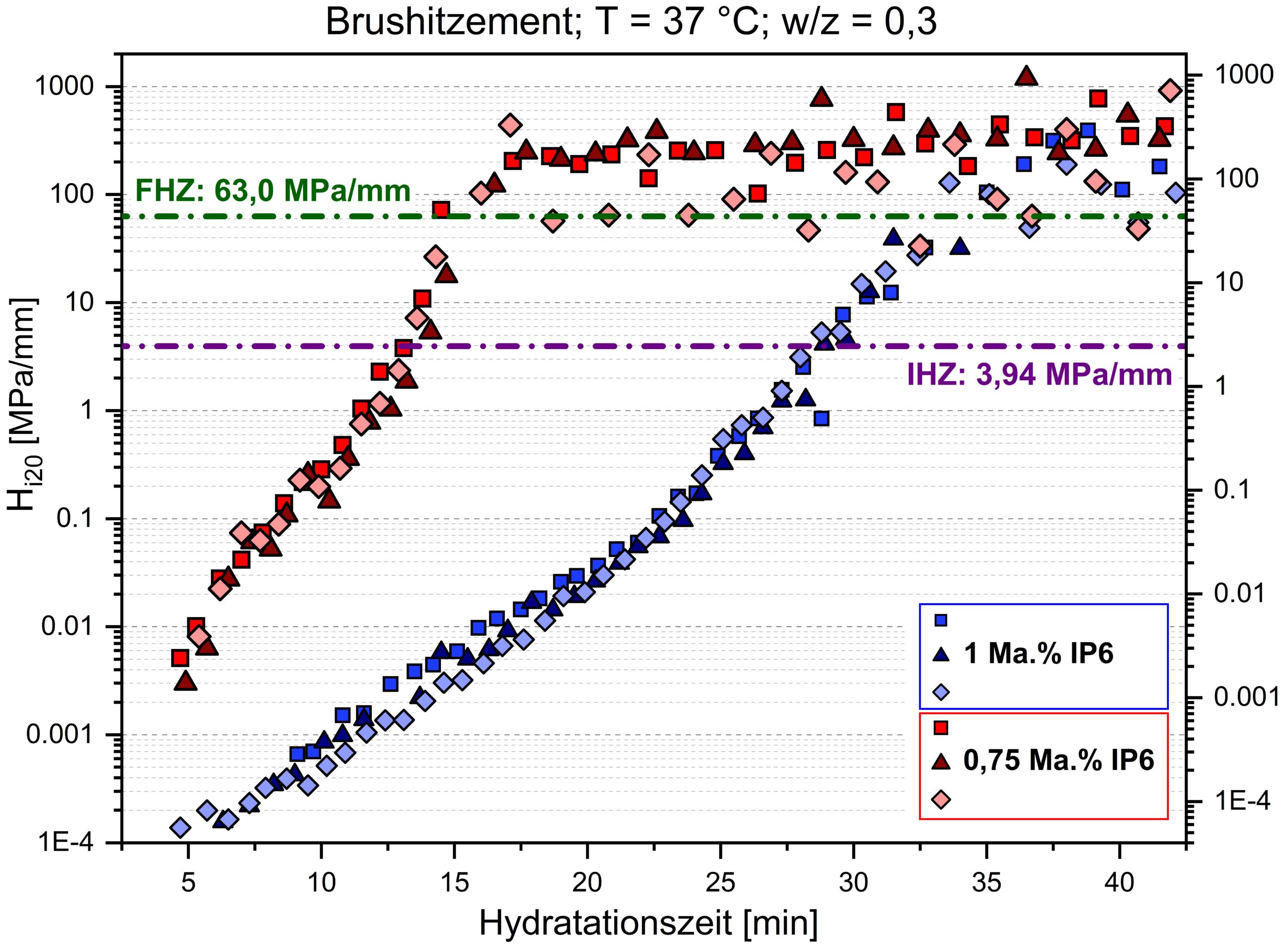

In addition, this system is an automated Gillmore needle apparatus (according to ASTM C 266), so the times of initial (IHZ) and final hardness (FHZ) can be determined. Therefore, the setting behaviour of different cement slurries can be optimally compared and interpreted with regard to the hydration progress, in particular the hydrate phase formation and the structure build-up.

Please contact the Chair of Applied Mineralogy for further information.

ImageIMETER_needle_a call

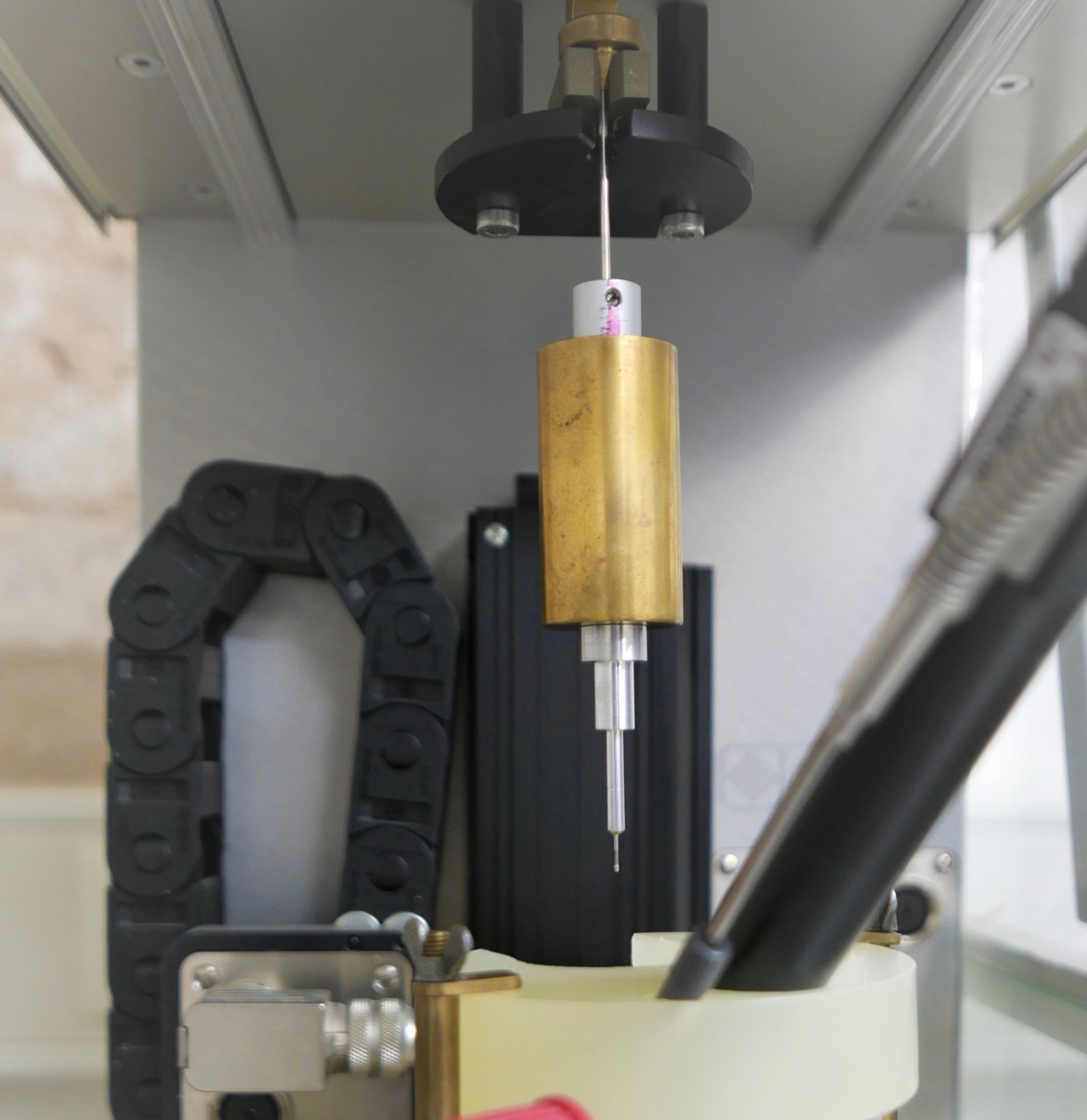

Measuring body of the IMETER system
ImageIMETER Probenkörper call

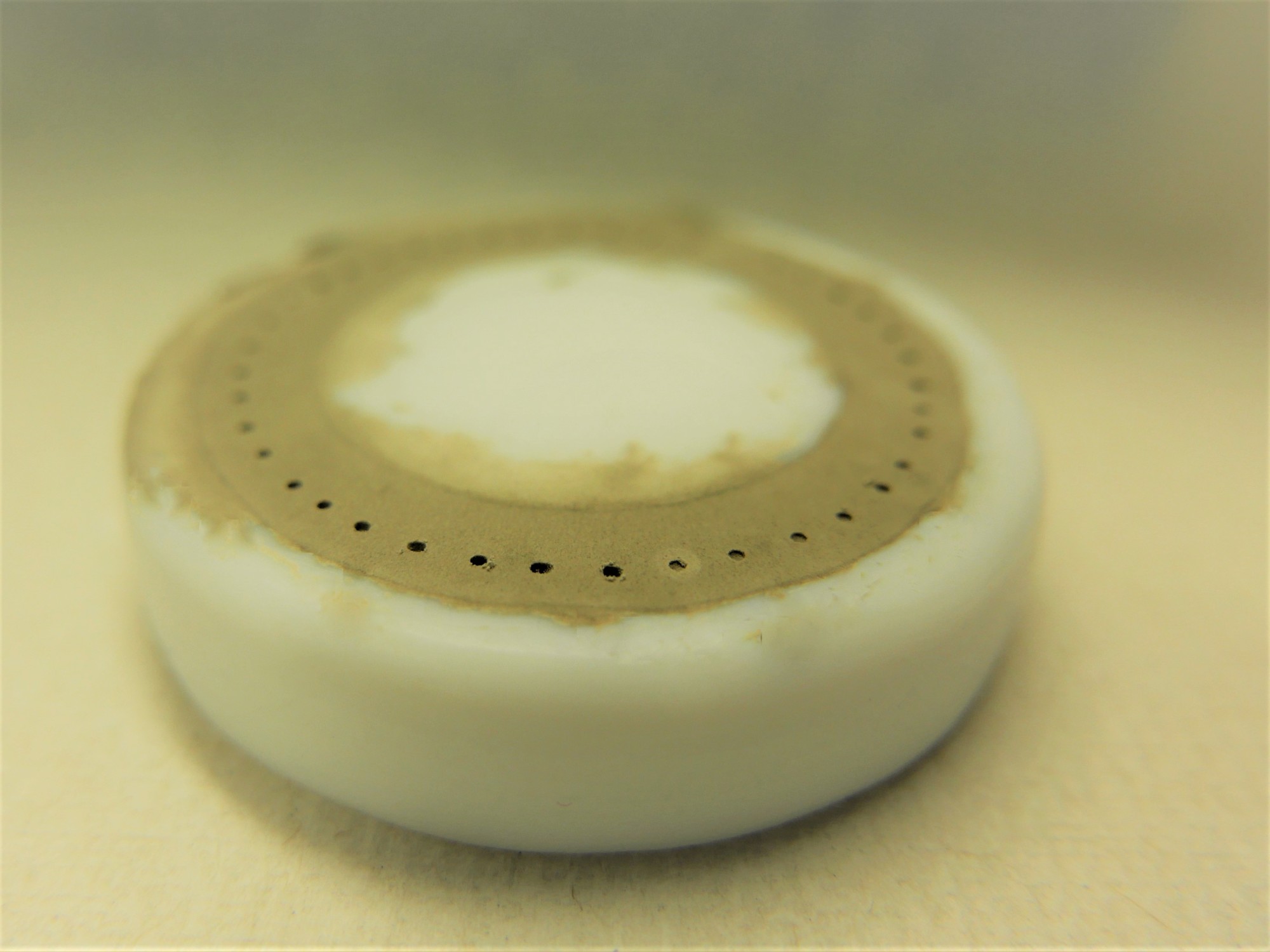

An IMETER sample after the measurement
ImageIMETER_Messung call

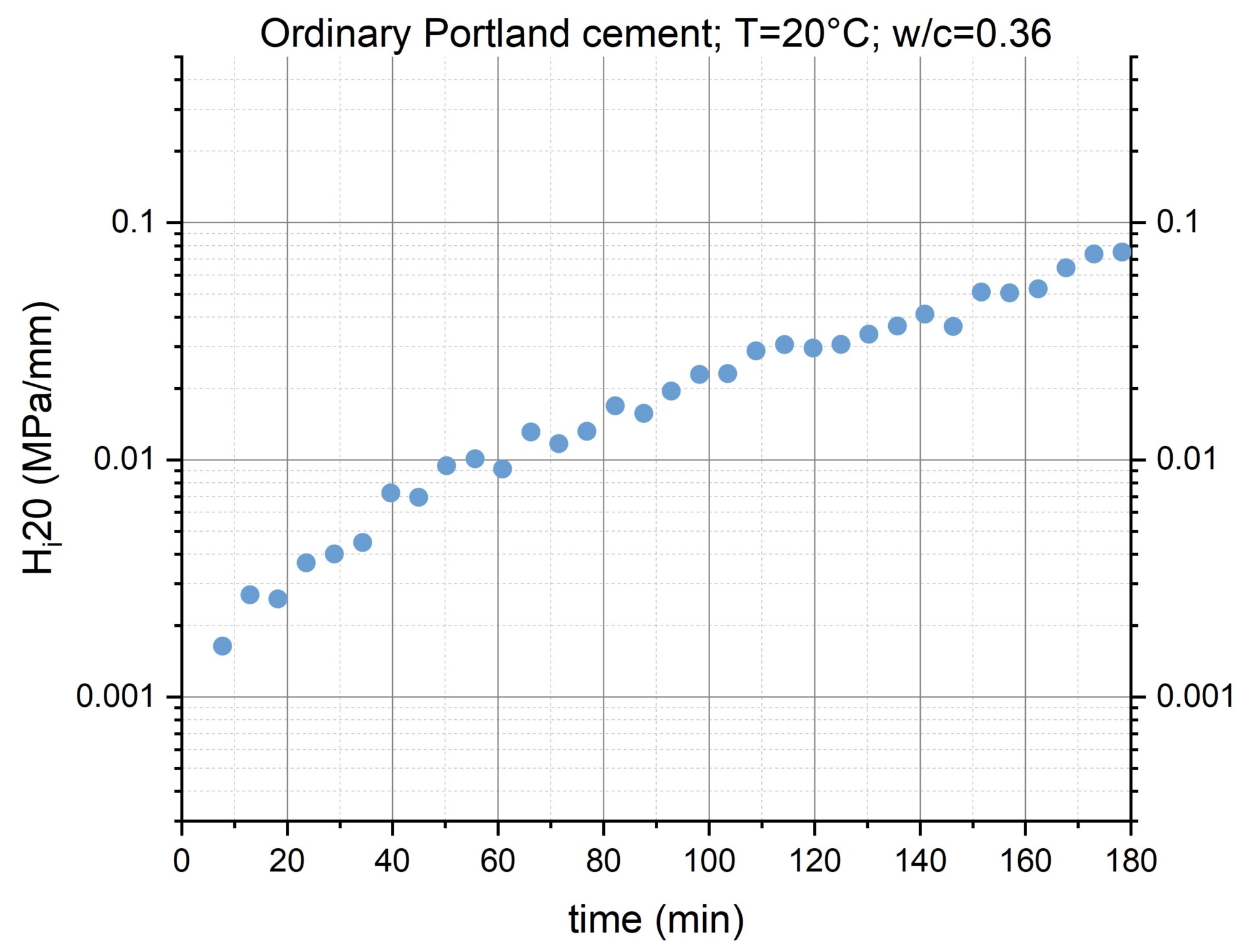

Development of the IMETER hardness Hi20 of an OPC
